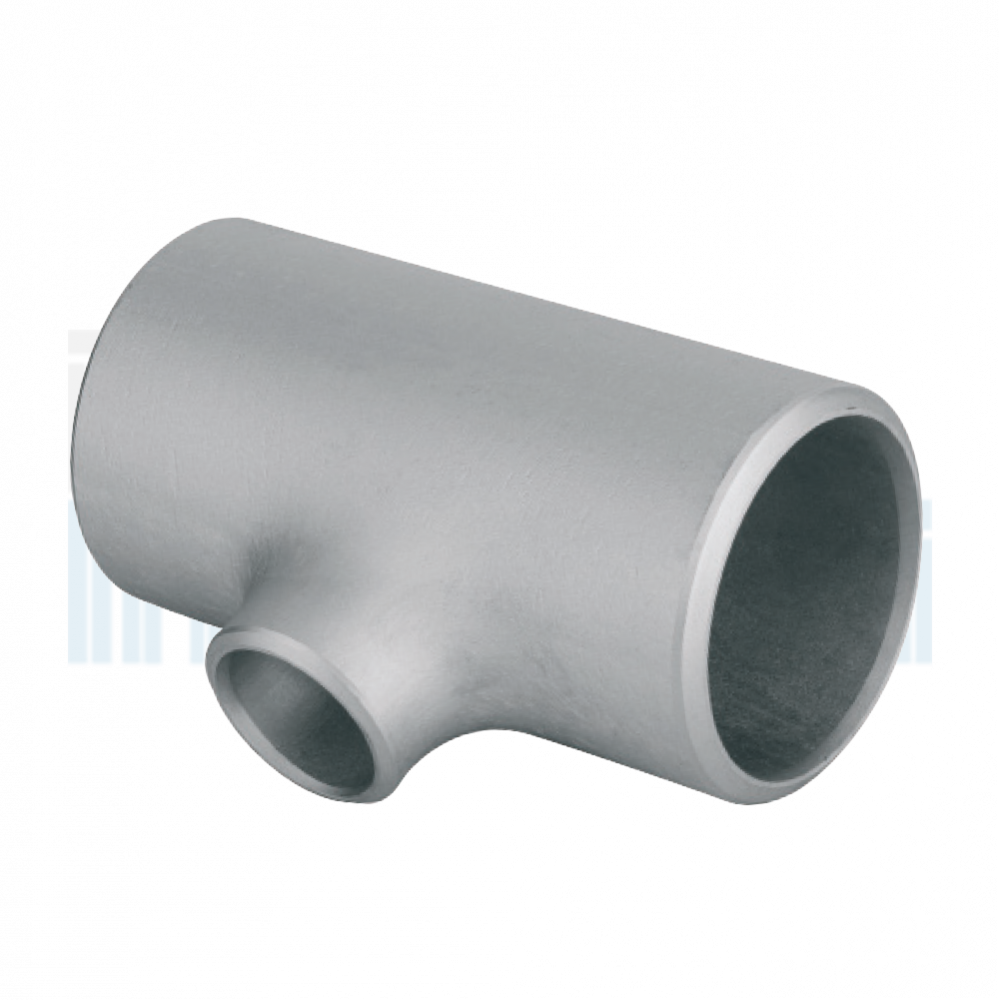

TEES RIDOTTI SENZA SALDATURA (SU RICHIESTA SCH160)

ASME B16.9 ASTM A 403
WP 304/304L E WP 316/316L

Su richiesta saldate

tees-rid-02

TEES RIDOTTI SENZA SALDATURA (SU RICHIESTA SCH160)

ASME B16.9 ASTM A 403
WP 304/304L E WP 316/316L

Su richiesta saldate

D.E. POLLICI

D.E. INCHES

Ø est. x Ø est.

Outs. Ø x Outs. Ø

Sp. x Sp. mm

Thck. x Thck. mm

SCH

C

M

Peso Kg/pz.

Weight Kg/pcs.

3/4" x 1/2"

26.67 x 21.34

2.11 x 2.11

10S

29

29

0.11

26.67 x 21.34

2.87 x 2.77

40S

0.15

26.67 x 21.34

3.91 x 3.73

80S

0.19

1" x 1/2"

33.40 x 21.30

2.77 x 2.11

10S

38

38

0.19

33.40 x 21.30

3.38 x 2.77

40S

0.22

33.40 x 21.30

4.55 x 3.73

80S

0.28

1" x 3/4"

33.40 x 26.67

2.77 x 2.11

10S

0.19

33.40 x 26.67

3.38 x 2.87

40S

0.23

33.40 x 26.67

4.55 x 3.91

80S

0.29

1 1/4" x 3/4"

42.16 x 26.67

2.77 x 2.11

10S

48

48

0.44

42.16 x 26.67

3.56 x 2.87

40S

0.53

42.16 x 26.67

4.85 x 3.91

80S

0.66

1 1/4" x 1"

42.16 x 33.40

2.77 x 2.77

10S

0.45

42.16 x 33.40

3.56 x 3.38

40S

0.53

42.16 x 33.40

4.85 x 4.55

80S

0.60

1 1/2" x 1/2"

48.26 x 21.30

2.77 x 2.11

10S

57

57

0.39

48.26 x 21.30

3.68 x 2.77

40S

0.51

48.26 x 21.30

5.08 x 3.73

80S

0.67

1 1/2" x 3/4"

48.26 x 26.67

2.77 x 2.11

10S

0.40

48.26 x 26.67

3.68 x 2.87

40S

0.52

48.26 x 26.67

5.08 x 3.91

80S

0.69

1 1/2" x 1"

48.26 x 33.40

2.77 x 2.77

10S

0.42

48.26 x 33.40

3.68 x 3.38

40S

0.55

48.26 x 33.40

5.08 x 4.55

80S

0.73

1 1/2" x 1 1/4"

48.26 x 42.16

2.77 x 2.77

10S

0.44

48.26 x 42.16

3.68 x 3.56

40S

0.57

48.26 x 42.16

5.08 x 4.85

80S

0.77

2" x 3/4"

60.33 x 26.67

2.77 X 2.11

10S

64

44

0.51

60.33 x 26.67

3.91 X 2.87

40S

0.71

60.33 x 26.67

5.54 X 3.91

80S

0.99

2" x 1

60.33 x 33.40

2.77 x 2.77

10S

51

0.54

60.33 x 33.40

3.91 x 3.38

40S

0.74

60.33 x 33.40

5.54 x 4.55

80S

1.02

2" x 1 1/4"

60.33 x 42.16

2.77 x 2.77

10S

64

57

0.57

60.33 x 42.16

3.91 x 3.56

40S

0.80

60.33 x 42.16

5.54 x 4.85

80S

1.07

2" x 1 1/2"

60.33 x 48.26

2.77 x 2.77

10S

60

0.59

60.33 x 48.26

3.91 x 3.68

40S

0.83

60.33 x 48.26

5.54 x 5.08

80S

1.11

2 1/2" x 1"

73.03 x 33.40

3.05 x 2.77

10S

76

57

0.88

73.03 x 33.40

5.16 x 3.38

40S

1.35

2 1/2" x 1 1/2"

73.03 x 48.26

3.05 x 2.77

10S

67

0.90

73.03 x 48.26

5.16 x 3.68

40S

1.49

2 1/2" x 2"

73.03 x 60.30

3.05 x 2.77

10S

70

0.94

73.03 x 60.30

5.16 x 3.91

40S

1.53

3" x 1"

88.90 x 33.40

3.05 x 2.77

10S

86

67

1.15

88.90 x 33.40

5.49 x 3.38

40S

2.05

3" x 1 1/2"

88.90 x 48.30

3.05 x 2.77

10S

73

1.19

88.90 x 48.30

5.49 x 3.68

40S

2.05

88.90 x 48.30

7.62 x 5.08

80S

2.77

3" x 2"

88.90 x 60.33

3.05 x 2.77

10S

76

1.23

88.90 x 60.33

5.49 x 3.91

40S

2.16

88.90 x 60.33

7.62 x 5.54

80S

2.85

3" x 2 1/2"

88.90 x 73.03

3.05 x 3.05

10S

83

1.31

88.90 x 73.03

5.49 x 5.16

40S

2.29

4" x 2"

114.30 x 60.33

3.05 x 2.77

10S

105

89

2.35

114.30 x 60.33

6.02 x 3.91

40S

4.50

114.30 x 60.33

8.56 x 5.54

80S

4.91

4" x 2 1/2"

114.30 x 73.03

3.05 x 3.05

10S

95

2.45

114.30 x 73.03

6.02 x 5.16

40S

4.70

4" x 3"

114.30 x 88.90

3.05 x 3.05

10S

98

2.50

114.30 x 88.90

6.02 x 5.49

40S

4.80

114.30 x 88.90

8.56 x 7.62

80S

5.31

5" x 3"

141.30 x 88.9

3.40 x 3.05

10S

124

111

3.13

141.30 x 88.9

6.55 x 5.49

40S

5.85

5" x 4"

141.30 x 114.3

3.40 x 3.05

10S

117

3.26

141.30 x 114.3

6.55 x 6.02

40S

6.14

6" x 3"

168.28 x 88.90

7.11 x 5.49

40S

143

124

9.80

6" x 4"

168.28 x 114.30

3.40 x 3.05

10S

130

5.10

168.28 x 114.30

7.11 x 6.02

40S

10.00

8" x 4"

219.08 x 114.30

3.40 x 3.05

10S

178

156

8.00

219.08 x 114.30

8.18 x 6.02

40S

17.50

8" x 6"

219.08 x 168.28

3.76 x 3.40

10S

168

8.40

219.08 x 168.28

8.18 x 7.11

40S

18.10
