fl_tas

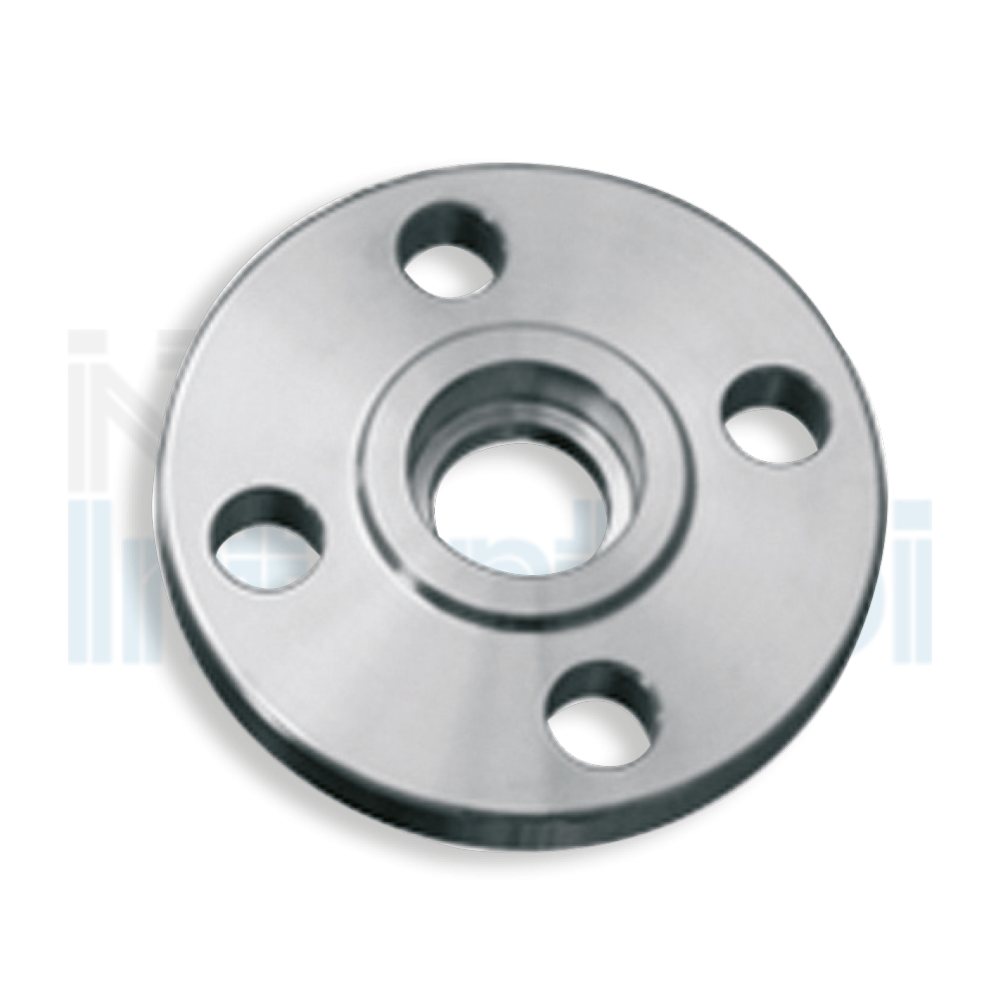

FLANGE DA SALDARE A TASCA FORGIATE

ASME B 16.5  |  ASTM A182  |  ASTM A403
SCH 40S
150 / 300 LBS

fl_tas

FLANGE DA SALDARE A TASCA FORGIATE

ASME B 16.5  |  ASTM A182  |  ASTM A403
SCH 40S
150 / 300 LBS

150 LB

Nom.

Size

O.D.

mm

D

mm

J

mm

c

mm

p

mm

b

mm

h

mm

m

mm

g

mm

Fori

Holes

l

mm

k

mm

Kg

1/2"

21.3

90

22.2

15.7

9.7

11.2

14

30

35.1

4

15.7

60.3

0.42

3/4"

26.7

100

27.7

20.8

11.2

12.7

14

38

42.9

4

15.7

69.9

0.59

1"

33.4

110

34.5

26.7

12.7

14.2

16

49

50.8

4

15.7

79.4

0.81

1 1/4"

42.2

115

43.2

35.1

14.2

15.7

19

59

63.5

4

15.7

88.9

1.07

1 1/2"

48.3

125

49.5

40.9

15.7

17.5

21

65

73.2

4

15.7

98.4

1.36

2"

60.3

150

61.9

52.6

17.5

19.1

24

78

91.9

4

19.1

120.7

2.10

2 1/2"

73

180

74.6

75.4

20.7

22.3

27

90

140.6

4

19.1

139.7

3.4

3"

88.9

190

90.7

77.9

22.3

23.9

29

108

127.0

4

19.1

152.4

3.9

4"

114

230

116.1

102.3

22.3

23.9

32

135

157.2

8

19.1

190.5

5.9

5"

141,3

255

143.8

128.2

22.3

23.9

35

164

185.7

8

22.2

215.9

6.8

6"

168,3

280

170.7

154.1

23.9

25.4

38

192

215.9

8

22.2

241.3

8.6

8"

219,1

345

221.5

202.7

27.0

28.6

43

246

269.9

8

22.4

298.5

13.7

300 LB

Nom.

Size

O.D.

mm

D

mm

J

mm

c

mm

p

mm

b

mm

h

mm

m

mm

g

mm

Fori

Holes

l

mm

k

mm

Kg

1/2"

21.3

95

22.2

15.7

9.7

14.2

21

38

35.1

4

15.7

66.7

0.66

3/4"

26.7

115

27.7

20.8

11.2

15.7

24

48

42.9

4

19.1

82.6

1.15

1"

33.4

125

34.5

26.7

12.7

17.5

25

54

50.8

4

19.1

88.9

1.40

1 1/4"

42.2

135

43.2

35.1

14.2

19.1

25

64

63.5

4

19.1

98.4

1.75

1 1/2"

48.3

155

49.5

40.9

15.7

20.6

29

70

73.2

4

22.4

114.3

2.55

2"

60.3

165

61.9

52.6

17.5

22.4

32

84

91.9

8

19.1

127.0

2.93

2 1/2"

73

190

74.7

62.7

19

25.4

37

100

104.6

8

22.3

149.3

4.4

3"

88,9

210

90.7

77.9

20.6

28.6

41

117.3

127.0

8

22.3

168.1

6.0

4"

114

255

116.1

102.3

23.8

31.8

46

146

157.2

8

22.3

200.0

10
