manrd_sw

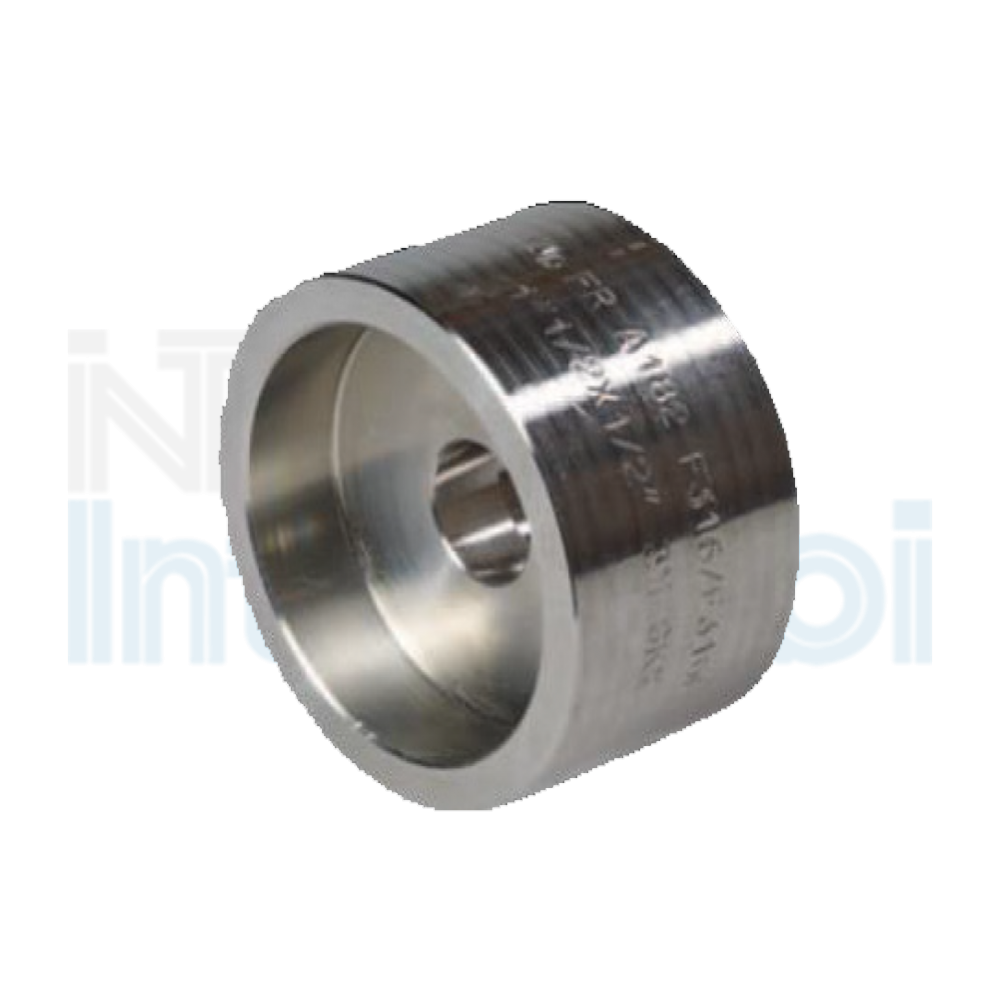

MANICOTTI RIDOTTI S.W.

ANSI B16.11
3000 - 6000 LBS

manrd_sw

MANICOTTI RIDOTTI S.W.

ANSI B16.11
3000 - 6000 LBS

Diam. nominale

Nominal pipe size

3000

6000

Q (1)

R (1)

Q (1)

R (1)

mm

inches

mm

inches

mm

inches

mm

inches

3/8" x 1/4"

25.4

1

24.9

0.98

25.4

1

26.7

1.05

1/2" x 3/8"

28.7

1.13

31.0

1.22

28.7

1.13

33.0

1.30

1/2" x 1/4"

28.7

1.13

31.0

1.22

28.7

1.13

33.0

1.30

3/4" x 1/2"

35.0

1.38

36.0

1.42

35.0

1.38

40.1

1.58

3/4" x 1/4"

35.0

1.38

36.0

1.42

35.0

1.38

40.1

1.58

1" x 3/4"

38.1

1.50

45.2

1.78

38.1

1.50

50.0

1.97

1" x 1/2"

38.1

1.50

45.2

1.78

38.1

1.50

50.0

1.97

1" x 1/4"

38.1

1.50

45.2

1.78

38.1

1.50

50.0

1.97

1 1/4" x 1"

38.1

1.50

55.1

2.17

38.1

1.50

57.9

2.28

1 1/2" x 1"

38.1

1.50

60.0

2.36

38.1

1.50

65.0

2.56

1 1/2" x 3/4"

38.1

1.50

60.0

2.36

38.1

1.50

65.0

2.56

1 1/2" x 1/2"

38.1

1.50

60.0

2.36

38.1

1.50

65.0

2.56

2" x 1/2"

51.3

2.02

74.9

2.95

51.3

2.02

82.0

3.23

2" x 1"

51.3

2.02

74.9

2.95

51.3

2.02

82.0

3.23
