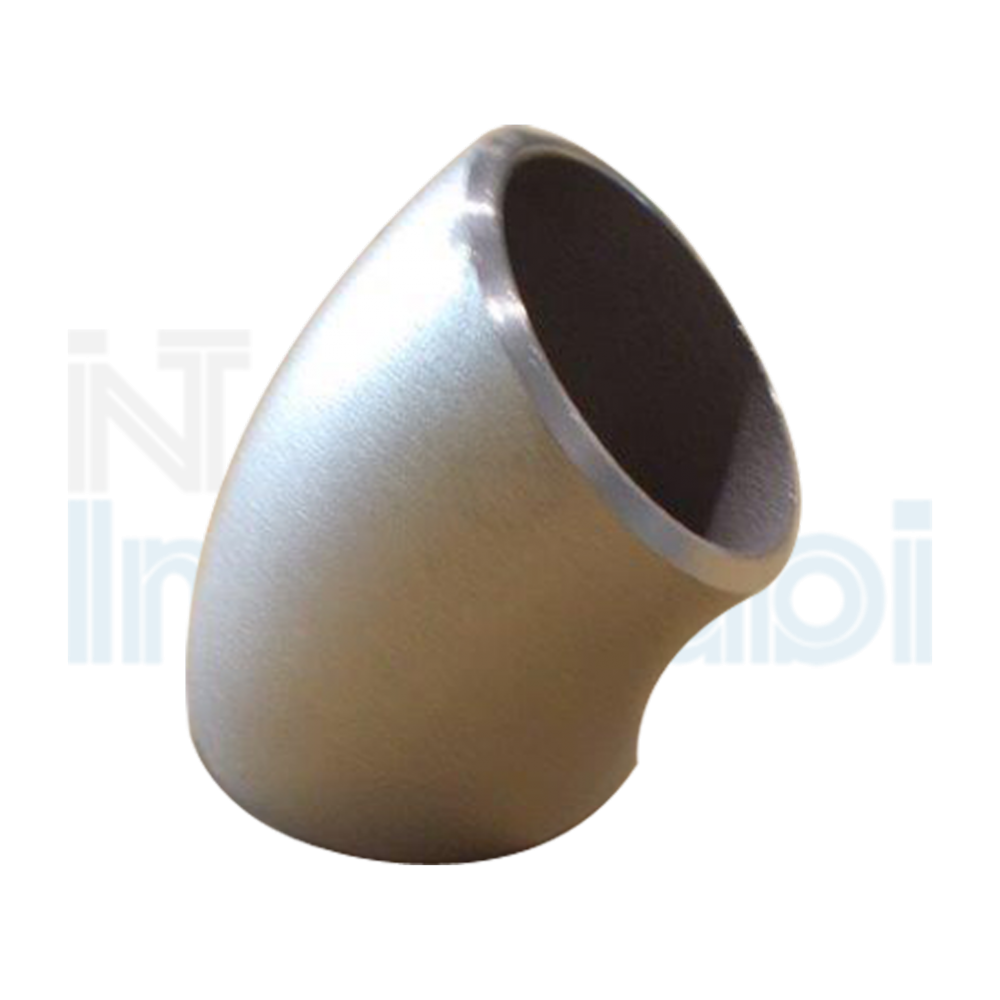

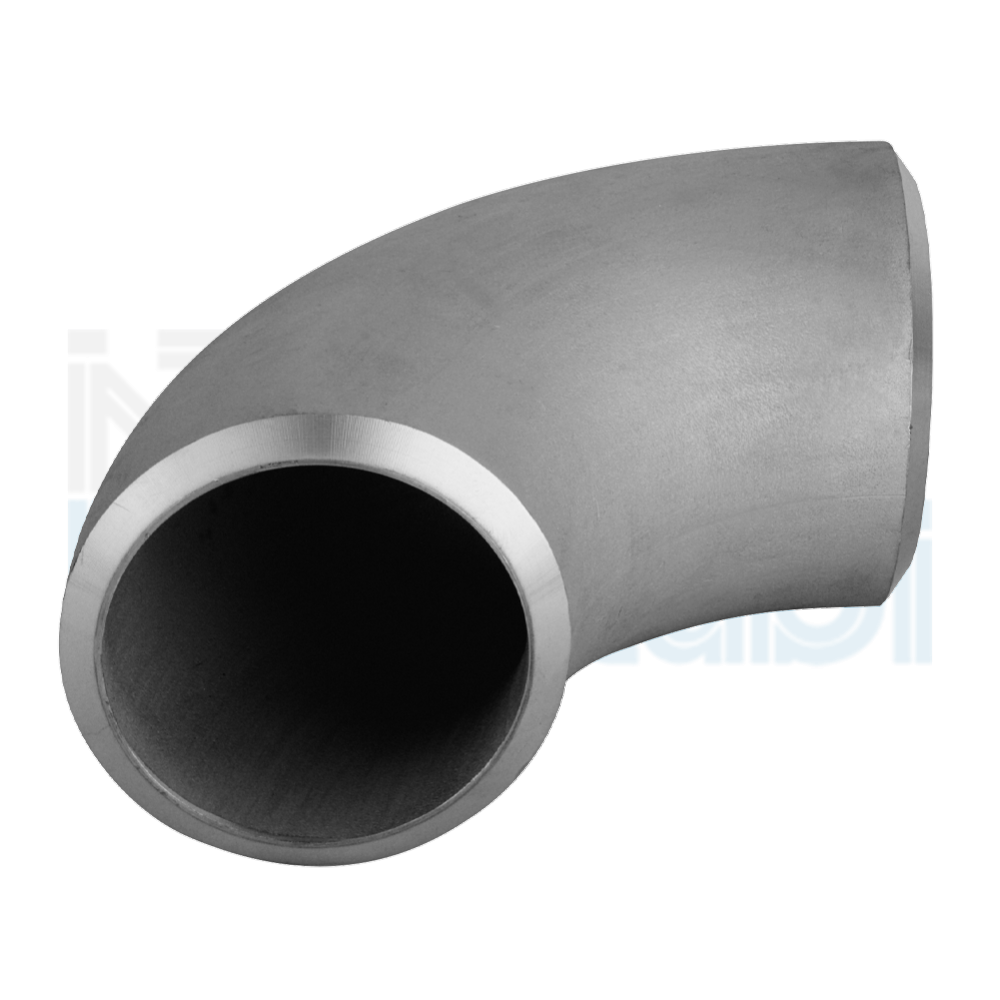

Il catalogo di curve in acciaio inox: 90° raggio 1,5D Dima 3

Caratteristiche Tecniche

D.E. POLLICI D.E. INCHES	Ø EST. MM X SPESS. MM OUTS. DIAM. MM X THICKN MM	SCH	CURVE / ELBOWS		Peso Kg/pz. Weight Kg/pcs.
D.E. POLLICI D.E. INCHES	Ø EST. MM X SPESS. MM OUTS. DIAM. MM X THICKN MM	SCH	90° A	45° B	Peso Kg/pz. Weight Kg/pcs.
1/2"	21.34 x 2.11	10S	38	16	0.06
	21.34 x 2.77	40S			0.08
	21.34 x 3.73	80S			0.10
	21.34 x 4.78	160			0.15
3/4"	26.67 x 2.11	10S	38	19	0.07
	26.67 x 2.87	40S			0.09
	26.67 x 3.91	80S			0.11
	26.67 x 5.56	160			0.23
1"	33.40 x 2.77	10S	38	22	0.14
	33.40 x 3.38	40S			0.16
	33.40 x 4.55	80S			0.22
	33.40 x 6.35	160			0.25
1 1/4"	42.16 x 2.77	10S	48	25	0.23
	42.16 x 3.56	40S			0.25
	42.16 x 4.85	80S			0.40
	42.16 x 6.35	160			0.42
1 1/2"	48.26 x 2.77	10S	57	29	0.30
	48.26 x 3.68	40S			0.40
	48.26 x 5.08	80S			0.51
	48.26 x 7.14	160			0.65
2"	60.33 x 2.77	10S	76	35	0.51
	60.33 x 3.91	40S			0.71
	60.33 x 5.54	80S			0.91
	60.33 x 8.71	160			1.33
2 1/2"	73.03 x 3.05	10S	95	44	0.85
	73.03 x 5.16	40S			1.36
	73.03 x 7.01	80S			1.81
	73.03 x 9.53	160			2.33
3"	88.90 x 3.05	10S	114	51	1.22
3"	88.90 x 5.49	40S	114	51	2.18
3"	88.90 x 7.62	80S	114	51	2.98
3"	88.90 x 11.13	160	114	51	3.83
4"	114.30 x 3.05	10S	152	64	2.15
	114.30 x 6.02	40S			4.17
	114.30 x 8.56	80S			6.18
	114.30 x 13.49	160			8.02
5"	141.30 x 3.40	10S	190	79	3.63
	141.30 x 6.55	40S			6.86
	141.30 x 9.53	80S			9.58
6"	168.28 x 3.40	10S	229	95	4.90
	168.28 x 7.11	40S			10.90
	168.28 x 10.97	80S			16.33
8"	219.08 x 3.76	10S	305	127	10.66
	219.08 x 8.18	40S			21.50
	219.08 x 12.70	80S			33.11
10"	273.05 x 4.19	10S	381	159	19.50
10"	273.05 x 9.27	40S	381	159	38.60
12"	323.85 x 4.57	10S	457	190	27.22
12"	323.85 x 9.53	40S	457	190	59.40
14"	355.60 x 4.78	10S	533	222	36.30
14"	355.60 x 9.53	40S	533	222	70.30
16"	406.40 x 4.78	10S	610	254	47.63
16"	406.40 x 9.53	40S	610	254	91.60
18"	457.20 x 4.78	10S	686	286	59.87
18"	457.20 x 9.53	40S	686	286	113.00
20"	508.00 x 5.54	10S	762	318	99.79
20"	508.00 x 9.52	40S	762	318	140.00
24"	609.60 x 6.35	10S	914	381	140.61
24"	609.60 x 9.52	40S	914	381	207.80
